Omada BE5000 Ceiling Mount Wi-Fi 7 Access Point (DC Adapter Included), EAP720

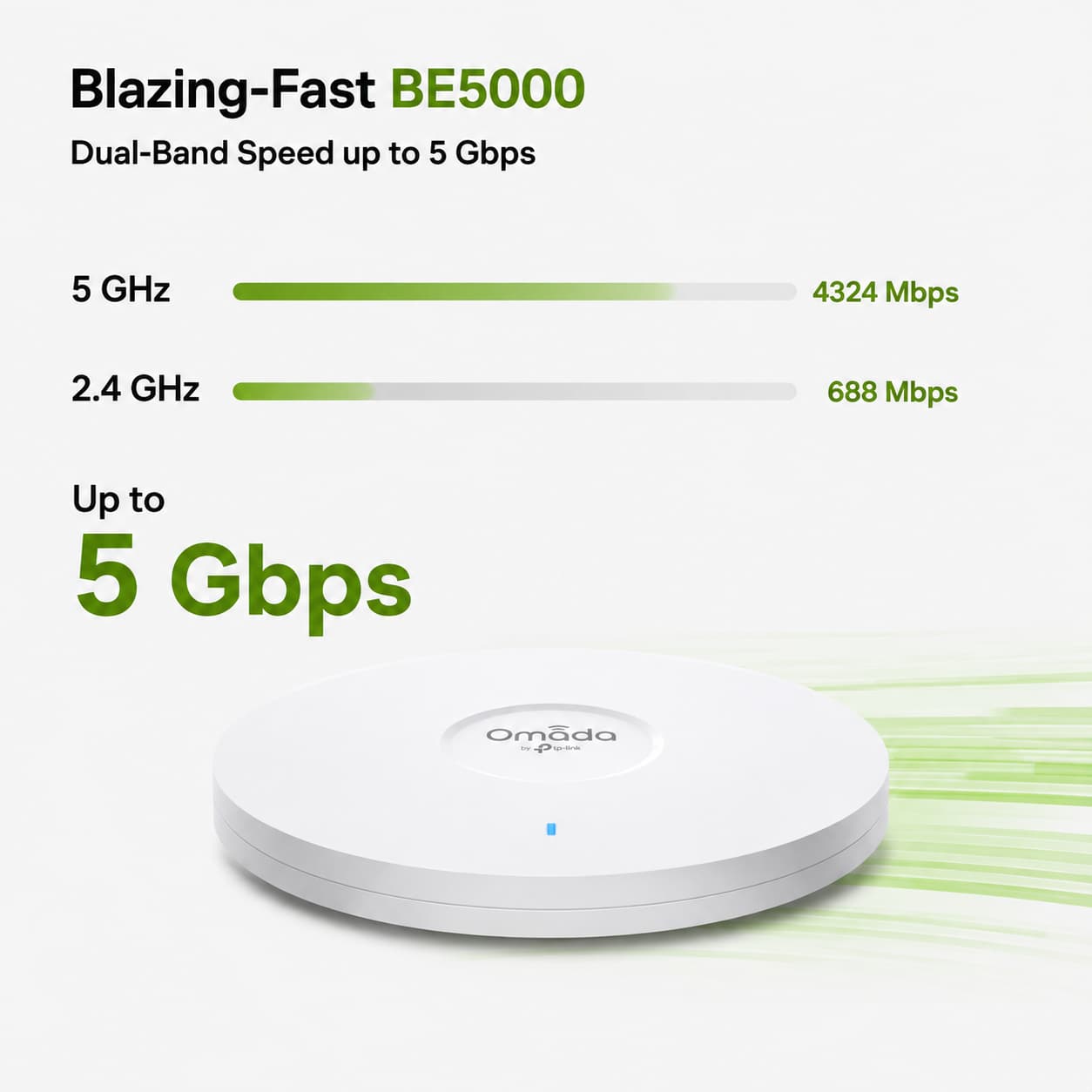

Dual-Band 4-Stream Wi-Fi 7: Up to 5.0 Gbps (4324 Mbps on 5 GHz + 688 Mbps on 2.4 GHz).†
1× 2.5G Port: Ensures fast connectivity throughout the network.
Low Latency and Interference: Multi-Link Operation, Multi-Rus, and 4K -QAM ensure high performance of your network.‡
Flexible Deployment and Easy Setup: Supports both 802.3at PoE and DC Power supply for flexible installation (power adapter included). Omada SDN for one-click setup.

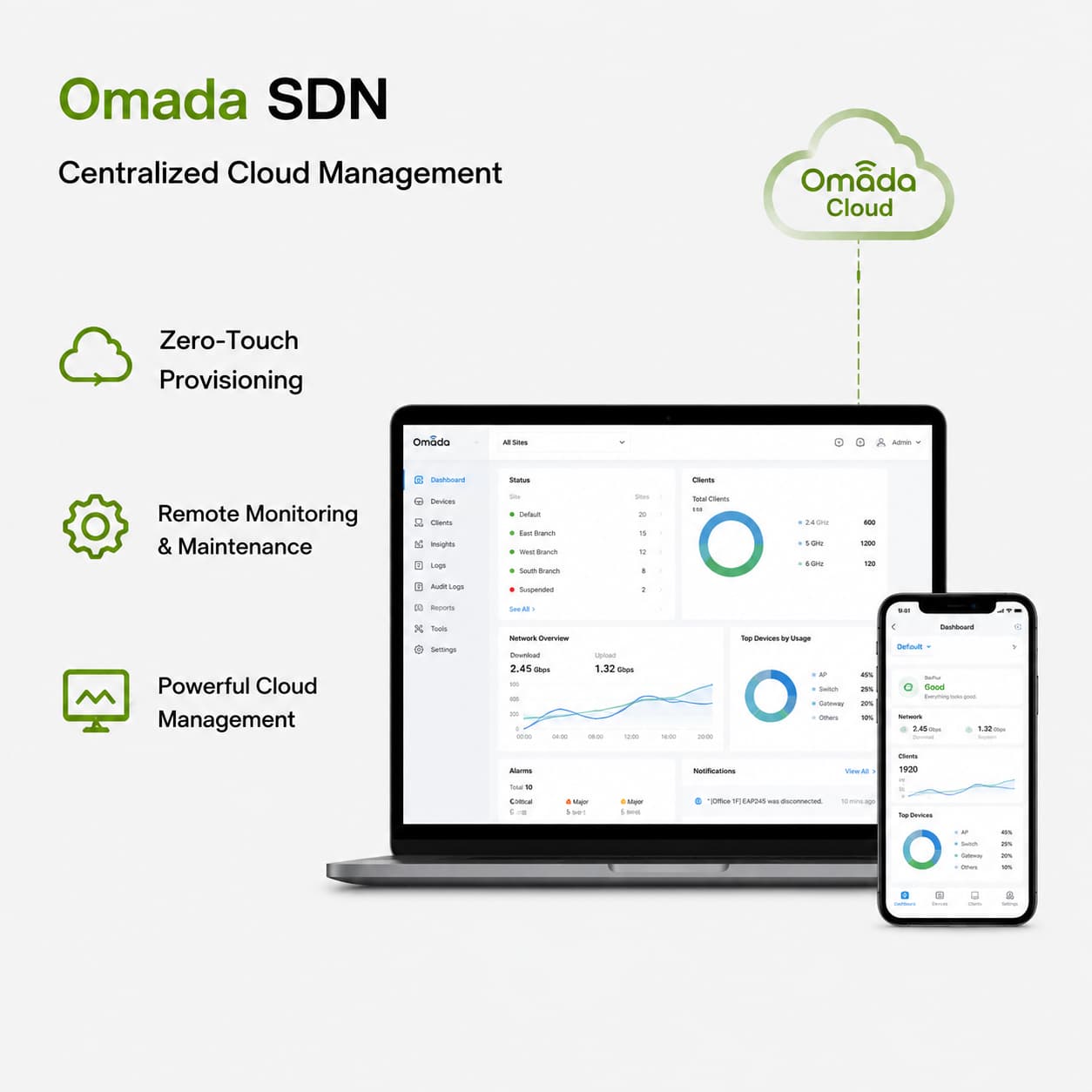

Advanced Features: Supports centralized management, Mesh, and Seamless Roaming.△

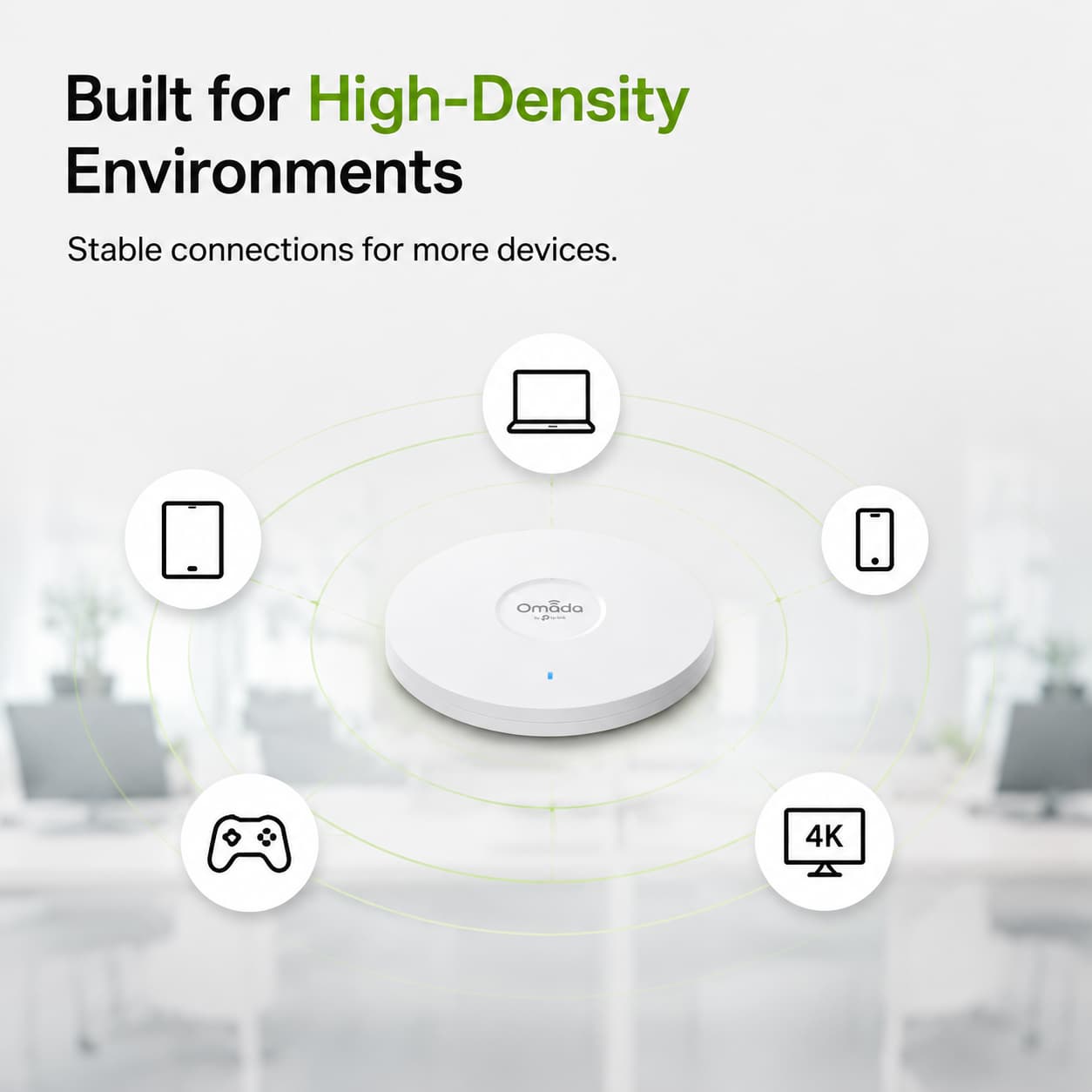

More Connections and Wider Coverage: Supports 250+ concurrent clients* and covers up to 1500 ft² (140 ㎡) **for reliable and extensive wireless connectivity.
SKU: EAP720
Faster, smarter wireless coverage with Omada EAP720
Upgrade your office, retail space, classroom, or hospitality network with a ceiling-mount Wi-Fi 7 access point built for speed, device density, security, and centralized management. The EAP720 delivers up to 5.0 Gbps of combined wireless capacity with a multi-gigabit wired connection—and the DC power adapter is included.
Fast Wi-Fi is only the beginning
The EAP720 combines next-generation wireless performance with the management and security controls businesses need to operate reliably.
- Professional offices and medical practices
- Retail stores, restaurants, and hospitality locations
- Schools, classrooms, and training facilities
- Warehouses and large spaces
- Multi-access-point (mesh) environments
- Guest, employee, voice, and IoT network segmentation
- Wireless coverage and access point placement planning
- Omada controller, policies, and configurations
- Business, guest, voice, and IoT SSID setups
- VLAN, security, roaming, and access-policy configuration
- Firmware updates and performance verification
- Ongoing network monitoring and support options
Omada EAP720 hardware details
The most important specifications for planning your deployment and confirming network compatibility.
From purchase to business-ready Wi-Fi
Follow these four steps to plan and deploy the Omada EAP720 access point in your network.
Important details before ordering
Click any question to view detailed answers regarding compatibility, power, roaming, and Live-Tech services.
HARDWARE FEATURES
Interface 1× 2.5G Ethernet Port
Button Reset
Power Supply 802.3at PoE or 12V/1.5A DC (Power Adapter Included)
Max. Power Consumption • 17.83 W (For PoE);
• 13.99 W (For DC)
Dimensions ( W x D x H ) 6.3 × 6.3 × 1.4 in (160 × 160 × 36.7 mm)
Antenna • 2.4 GHz: 2× 4.0 dBi
• 5 GHz: 2× 5.0 dBi
Mounting Ceiling / Wall / Junction Box Mounting (Kits Included)
Management Features
Omada App Yes
Centralized Management • Omada Central (Cloud-Based)
• Omada Hardware Controller
• Omada Software Controller
Cloud Access Yes. Require the use of Omada Controller.
Email Alerts Yes
LED ON/OFF Control Yes
Management MAC Access Control Yes
SNMP v1, v2c, v3
System Logging Local/Remote Syslog Yes
Web-based Management Yes
WIRELESS FEATURES
Coverage 1500 ft² (140㎡)*
Concurrent Clients 250+**
Wireless Standards IEEE 802.11 a/b/g/n/ac/ax/be
Frequency 2.4 GHz and 5 GHz
Signal Rate 688 Mbps (2.4 GHz) + 4324 Mbps (5 GHz)
Wireless Functions • MLO‡
• 4K-QAM‡
• Seamless Roaming
• 240 MHz Bandwidth‡
• Mesh△
• OFDMA‡
• Load Balance
• Band Steering
• Beamforming
• Airtime Fairness
• Multiple SSIDS:16(8 on each band)
• Wireless Schedule
• Reboot Schedule
• QoS(WMM)
• Rate Limit
• Static IP/Dynamic IP
• RADIUS Accounting
• MAC Authentication
Wireless Security • Captive Portal Authentication△
• Access Control
• Maximum number of MAC Filter: 4,000
• Wireless Isolation Between Clients
• VLAN
• Rogue AP Detection
• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power < 25 dBm (2.4 GHz)
< 25 dBm (5 GHz, UNII-1&UNII-4)
< 24 dBm (5 GHz, UNII-2&UNII-3)
OTHERS
Certification CE, FCC, RoHS, IC
Package Content • Omada Wi-Fi 7 Ceiling Mount Access Point EAP720
• Installation Guide
• Ceiling/Wall/Juntion Box Mounting Kit
• Power Adapter
Environment • Operating Temperature: 0 °C–40 °C (32 °F–104 °F);
• Storage Temperature: -40 °C–70 °C (-40 °F–158 °F);
• Operating Humidity: 10%–90% non-condensing;
• Storage Humidity: 5%–90% non-condensing;
