Omada BE11000 Ceiling Mount Tri-Band Wi-Fi 7 Access Point with 1x2.5G port, EAP772
Omada BE11000 Ceiling Mount Tri-Band Wi-Fi 7 Access Point
PORT: 1x2.5G RJ45 Port
SPEED:574Mbps at 2.4 GHz + 4320 Mbps at 5 GHz+ 5760 Mbps at 6 GHz
FEATURE: 802.3at POE+ and 12V DC (Power Adapter is not included), 4xInternal Antennas, MU-MIMO, 320MHz Supported, Seamless Roaming, Band Steering, Beamforming, Load Balance, Airtime Fairness, MLO, 4K-QAM, Centralized Management by Omada SDN Controller, Omada App
SKU: EAP772
Faster, smarter wireless coverage with Omada EAP772
Give your network the speed, capacity, and advanced 6 GHz performance required by modern businesses. The Omada EAP772 combines tri-band BE11000 Wi-Fi 7, 320 MHz channels, Multi-Link Operation, and a 2.5GbE PoE+ connection in a streamlined ceiling-mount design.
Fast Wi-Fi is only the beginning
The EAP772 combines next-generation wireless performance with the management and security controls businesses need to operate reliably.

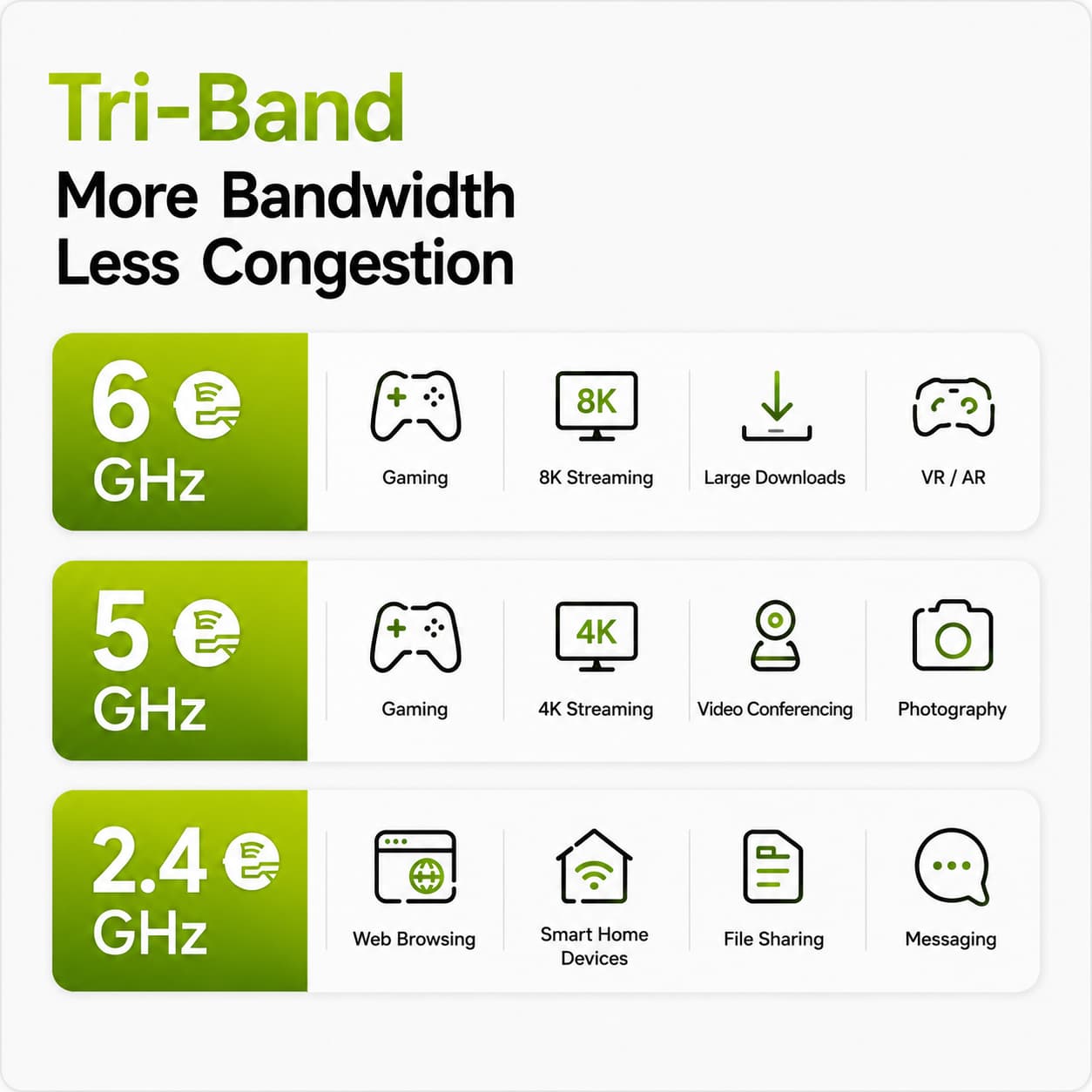

Three wireless bands working together
Distribute different devices and workloads across three available frequency bands for better capacity, compatibility, and performance.
- Professional offices and medical practices
- Retail stores, restaurants, and hospitality locations
- Schools, classrooms, and training facilities
- Warehouses and large spaces
- Multi-access-point (mesh) environments
- Guest, employee, voice, and IoT network segmentation
- Wireless coverage and access point placement planning
- Omada controller, policies, and configurations
- Business, guest, voice, and IoT SSID setups
- VLAN, security, roaming, and access-policy configuration
- Firmware updates and performance verification
- Ongoing network monitoring and support options
Omada EAP772 hardware details
The most important specifications for planning your deployment and confirming network compatibility.
From purchase to business-ready Wi-Fi
Follow these four steps to plan and deploy the Omada EAP772 access point in your network.
Important details before ordering
Click any question to view detailed answers regarding compatibility, power, roaming, and Live-Tech services.
HARDWARE FEATURES
Interface 1× 2.5G Ethernet Port
Button Reset
Power Supply • 802.3at PoE
• 12V/2.5A DC
Note: DC Power adapter is not included. DC power interface: 12V, accepts 2.1 mm / 5.5 mm center-positive circular plug with 9 mm length.
Max. Power Consumption • 25.44 W (For PoE);
• 22.57 W (For DC)
Dimensions ( W x D x H ) 8.7 × 8.7 × 1.3 in (220 × 220 × 32.5 mm)
Antenna • 2.4 GHz: 2× 4.0 dBi
• 5 GHz: 2× 5.0 dBi
• 6 GHz: 2× 5.0 dBi
Bluetooth 1 × 4.0 dBi, Bluetooth 5.2
*Firmware update may be required.
Mounting Ceiling / Wall Mounting (Kits Included)
Management Features
Omada App Yes
Centralized Management • Omada Cloud-Based Controller
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
Cloud Access Yes. Require the use of an OC300, OC200, Omada Software Controller, or an Omada Cloud-Based Controller.
Email Alerts Yes
LED ON/OFF Control Yes
Management MAC Access Control Yes
SNMP v1, v2c, v3
System Logging Local/Remote Syslog Yes
Web-based Management Yes
WIRELESS FEATURES
Coverage 140㎡(1500 ft²)§
Concurrent Clients 380+**
Wireless Standards IEEE 802.11 a/b/g/n/ac/ax/be
Frequency 6 GHz, 5 GHz, and 2.4 GHz
Signal Rate 574 Mbps (2.4 GHz) + 4320 Mbps (5 GHz) + 5760 Mbps (6 GHz)†
Wireless Functions • MLO‡
• 4K-QAM‡

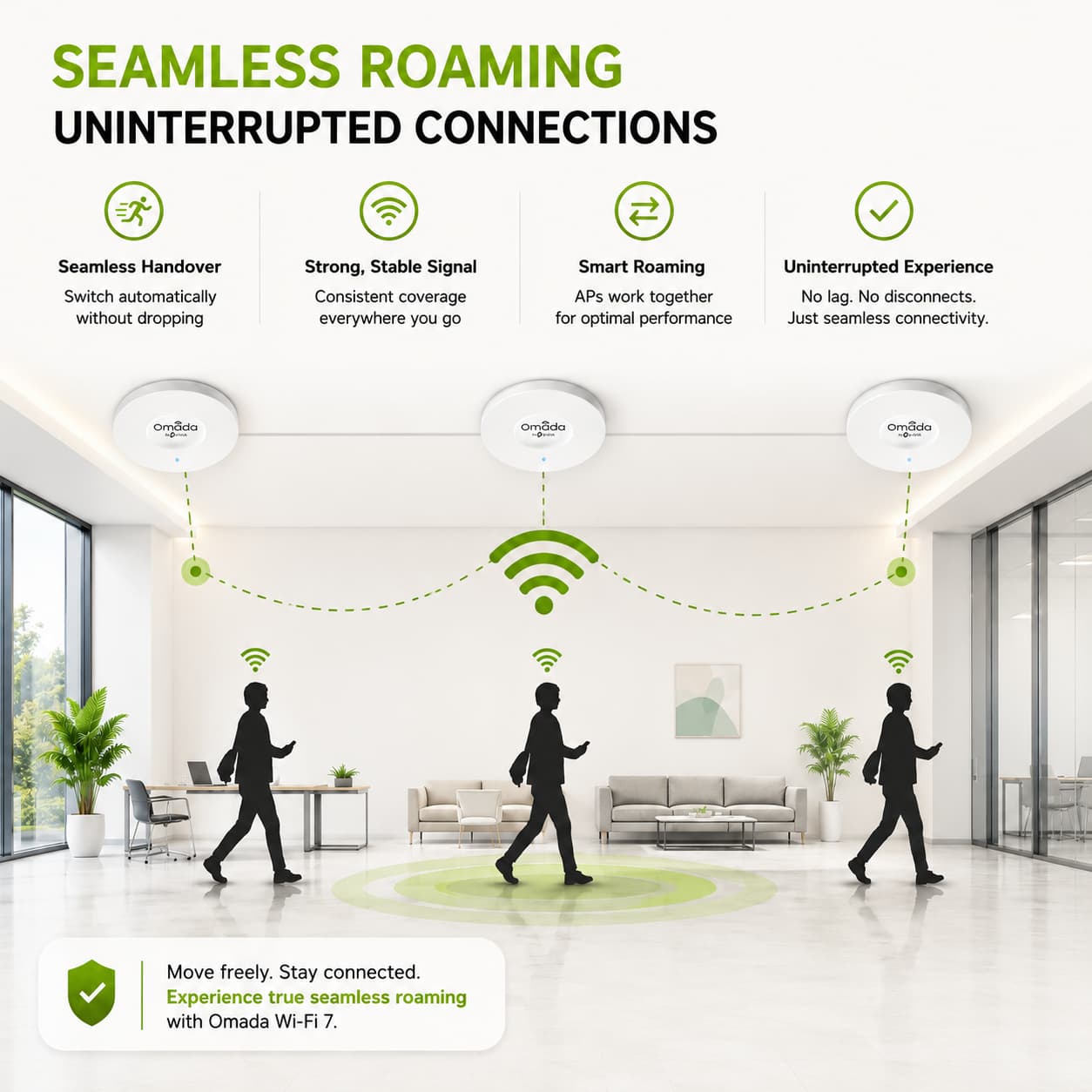

• Seamless Roaming(802.11k/v/r)
• MU-MIMO‡
• EHT320‡
• Mesh△
• BSS Coloring‡
• OFDMA‡
• Load Balance
• Band Steering
• Beamforming
• Airtime Fairness
• Multiple SSIDS:24(8 on each band)
• Wireless Schedule
• Reboot Schedule
• QoS(WMM)
• Rate Limit
• Static IP/Dynamic IP
• RADIUS Accounting
• MAC Authentication
Wireless Security • Captive Portal Authentication△
• Access Control
• Maximum number of MAC Filter: 4,000
• Wireless Isolation Between Clients
• VLAN
• Rogue AP Detection
• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power < 25dBm （2.4GHz）
< 25dBm （5GHz）
< 23dBm （6GHz）
OTHERS
Certification CE, FCC, RoHS, IC
Package Content • EAP772
• Installation Guide
• Ceiling/Wall Mounting Kit
Note: Power Adapter is NOT included.
Environment • Operating Temperature: 0 °C–40 °C (32 °F–104 °F);
• Storage Temperature: -40 °C–70 °C (-40 °F–158 °F);
• Operating Humidity: 10%–90% non-condensing;
• Storage Humidity: 5%–90% non-condensing;
